MMS Series AC Line Surge Protectors

Protect non-vital equipment from surges and spikes in utility power


Click to enlarge
Minuteman's MMS Series AC Surge Protector products defend non-critical equipment (peripherals, printers, etc.) against spikes and surges in power which can cause catastrophic damage.
Applications:

Printer/Fax
Laptops
Peripherals
Flat Screen TVs
Audio Equipment
Set-top Boxes
  1. Overview
  2. Standard
  3. Rotating Outlet
  4. Slimline
  5. Specifications
  6. LineGuard
  7. X3 Safety
MMS Series Overview

Ultimate Value Protection for Non-critical Devices

For non-critical equipment, i.e. devices that will not be required during a power outage, low-cost protection from power surges and spikes should always be included. Minuteman's diverse MMS Series of surge protector products offer a range of forms and features that ensure you'll find the perfect solution for your needs

Three series of surge protector products are available: Standard, Rotating Outlet, and Slimline. Each offers a unique set of features, which can be seen by click the tabs above.


Surge Protector safety is critical

Most Minuteman MMS Series surge protectors feature Advanced X3 MOV (metal oxide varistor) hardware for enhanced fire protection.

Learn more on the Surge Protector Safety tab >


Applications

Designed for:

  • Printer/Fax
  • Laptops
  • Peripherals
  • Flat Screen TVs
  • Audio Equipment
  • Set-top Boxes

Sample Installation

Click to enlarge
Standard Series Surge Protectors

Standard Series Models

  • MMS370 7-Outlet Surge Protector with "child safety" covers
  • MMS370T 7-Outlet Surge Protector with "child safety" covers and phone line protection
  • MMS570 Ruggedized 7-Outlet Surge Protector
  • MMS362P 6-Outlet Surge Protector "twin pack"
  • MMS130C 3-Outlet Surge Protector with coax protection
  • MMS110 Single Outlet Surge Protector

Additional Resources


Standard Series Models

7-Outlet Surge Protector w/ child safety covers [MMS370]
Click to enlarge
  • Seven fixed grounded outlets
  • Child safety covers
  • Wall mountable
  • Lifetime limited warranty
  • UL 1449 certified
  • $50,000 connected equipment warranty protection
  • 1080 Joules



7-Outlet Surge Protector w/ child safety covers, phone protection [MMS370T]
Click to enlarge
  • Seven fixed grounded outlets
  • Child safety covers
  • Wall mountable
  • Lifetime limited warranty
  • UL 1449 certified
  • Phone/fax/modem protection
  • Telephone cord included
  • $75,000 connected equipment warranty protection
  • 1440 Joules



Ruggedized 7-Outlet Surge Protector [MMS570]
Click to enlarge
  • Seven fixed outlets
  • Ruggedized metal case design
  • Wall mountable
  • Lifetime limited warranty
  • UL 1449 Certified
  • Safety shutdown technology
  • High-frequency capacitors
  • LED indicators
  • $75,000 connected equipment warranty protection
  • Nine foot power cord
  • Cord management design
  • 1440 Joules

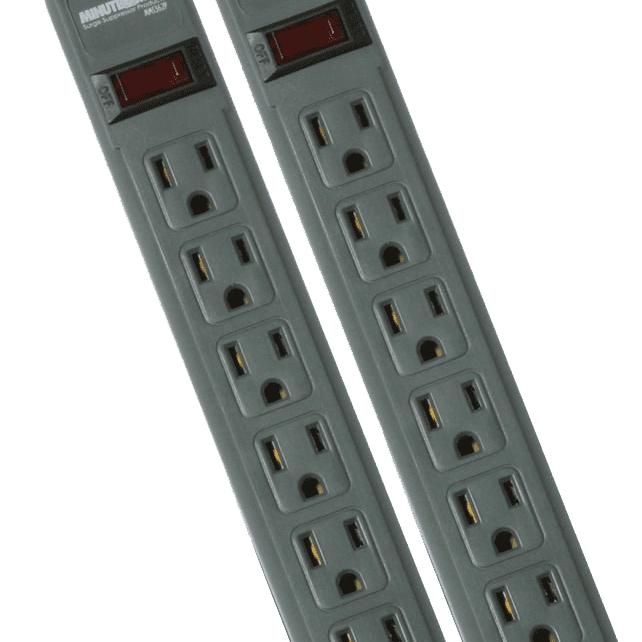

6-Outlet Surge Protector "twin pack" [MMS362P]
Click to enlarge
  • Two units in one pack
  • Protects against line surges
  • and spikes
  • Six grounded outlets each
  • Wall mountable
  • Two-year warranty
  • UL 1449 certified
  • 241 Joules



3-Outlet Surge Protector w/ coax protection [MMS130C]
Click to enlarge
  • Three grounded outlets
  • Lifetime limited warranty
  • UL 1449 certified
  • $50,000 connected equipment warranty protection
  • LED indicators
  • Coax/DSS protection
  • Switch shutdown technology
  • High frequency capacitors
  • 1080 Joules

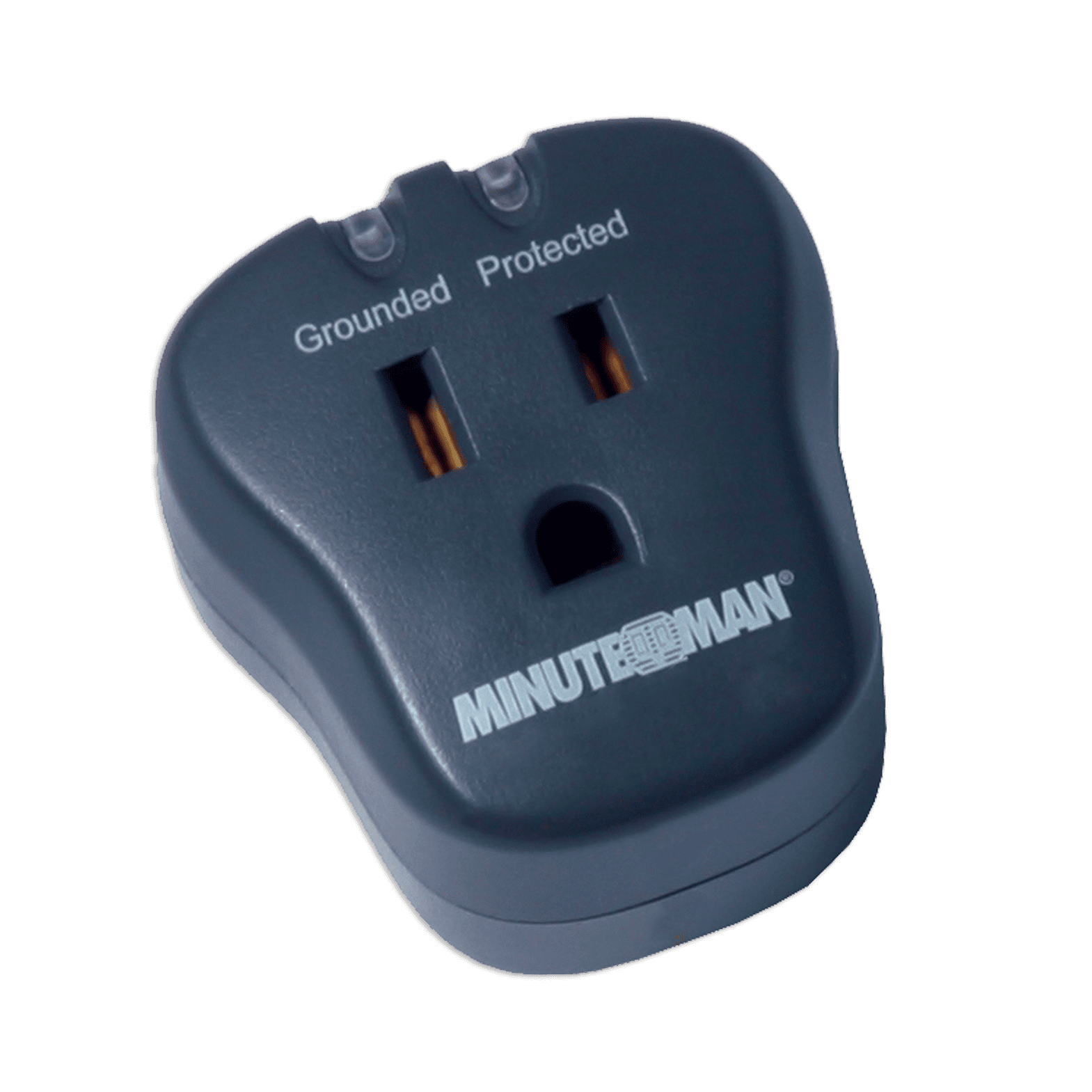

Single Outlet Surge Protector [MMS110]
Click to enlarge
  • Single grounded outlet
  • New MOV technology
  • Safety shutdown technology
  • High frequency capacitors
  • LED indicators
  • Lifetime limited warranty
  • UL 1449 certified
  • $25,000 connected equipment warranty protection
Rotating Outlet Series Surge Protectors

Rotating Outlet Series Models

  • MMS760RCT 6-Rotating outlet surge protector with coax and phone line protection
  • MMS780R 8-Outlet/6-rotating outlet surge protector
  • MMS7100RT 10-Outlet/5-rotating outlet surge protector with phone line protection
  • MMS7120RCT 12-Outlet/8-rotating outlet surge protector with coax and phone line protection

Additional Resources


Rotating Outlet Series Models

Click to enlarge

6-Rotating Outlet Surge Protector with coax and phone line protection [MMS760RCT]

  • Six 90 rotating outlets designed for connecting multiple transformers
  • Satellite/cable receiver coax protection
  • Phone/fax/modem protection
  • Phone cord included
  • UL 1449 certified
  • Lifetime limited warranty
  • $100,000 connected equipment warranty protection
  • 2160 Joules



Click to enlarge

12-Outlet/8-Rotating Outlet Surge Protector with coax and phone line protection [MMS7120RCT]

  • Rotating outlets designed for connecting multiple transformers
  • Eight 90 rotating grounded outlets and four fixed grounded outlets
  • Phone/fax/modem/coax protection
  • Telephone cord included
  • Cord management design
  • Wall mountable
  • Nine-foot power cord
  • UL 1449 certified
  • Lifetime limited warranty
  • $200,000 connected equipment warranty protection
  • LED indicators
  • 4320 Joules



Click to enlarge

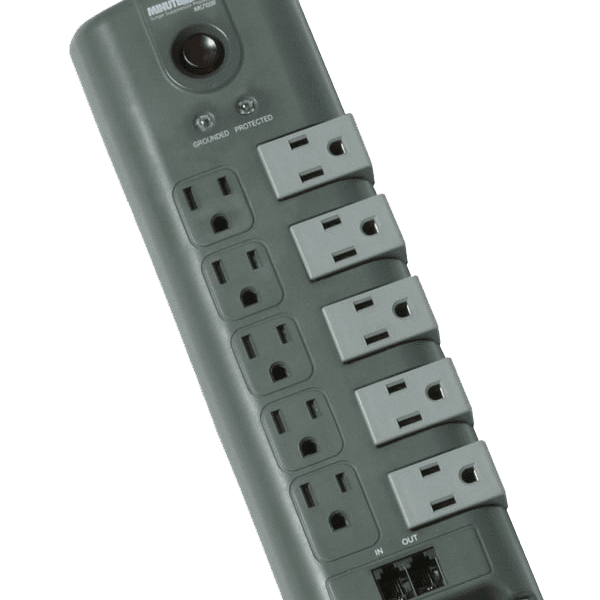

10-Outlet/5-Rotating Outlet Surge Protector with phone line protection [MMS7100RT]

  • Rotating outlets designed for connecting multiple transformers
  • Five 90 rotating grounded outlets and five fixed grounded outlets
  • Phone/fax/modem protection
  • Telephone cord included
  • Cord management design
  • Wall mountable
  • Seven-foot power cord
  • UL 1449 certified
  • Lifetime limited warranty
  • $150,000 connected equipment warranty protection
  • 2880 Joules



Click to enlarge

8-Outlet/6-Rotating Outlet Surge Protector [MMS780R]

  • Rotating outlets designed for connecting multiple transformers
  • Six 180 rotating outlets and two fixed outlets
  • Wall mountable
  • Cord management design
  • Seven foot power cord
  • UL 1449 certified
  • Lifetime limited warranty
  • $100,000 connected equipment warranty protection
  • 2160 Joules
Standard Series Surge Protectors

Slimline Series Models

  • MMS130RC 3-Outlet/1 rotating outlet & 1 rotating coax low-profile surge protector wall tap
  • MMS660S 6-Outlet low-profile surge protector wall tap
  • MMS664S 6-Outlet low-profile surge protector
  • MMS686SCT 8-Outlet surge protector with coax and phone line protection

Additional Resources


Standard Series Models

Click to enlarge
Learn more about the new
MMS Slimline Series



NEW! 3-Outlet/1-Rotating Outlet, 1 Rotating Coax Slimline Wall-tap [MMS130RC]

  • Two 90 rotating ports (1 outlet, 1 coax) designed to help hide cables
  • Satellite/cable receiver coax protection
  • Wall-tap anchors to outlet using included screw
  • Side-facing outlets perfect for wall-mount TV installations
  • High Visibility Green LED protection indicator
  • Attractive and functional low-profile design
  • UL 1449, UL 1363, UL 452, UL 1492, certified
  • Lifetime limited warranty
  • $75,000 connected equipment warranty protection
  • 1080 Joules



Click to enlarge
Learn more about the new
MMS Slimline Series



NEW! 6-Outlet Slimline Wall-tap [MMS660S]

  • Six grounded outlets
  • Wall-tap anchors to outlet using included screw
  • High Visibility Green LED protection indicator
  • Attractive and functional low-profile design
  • UL 1449, 1363 certified
  • Lifetime limited warranty
  • $50,000 connected equipment warranty protection
  • 540 Joules



Click to enlarge
Learn more about the new
MMS Slimline Series

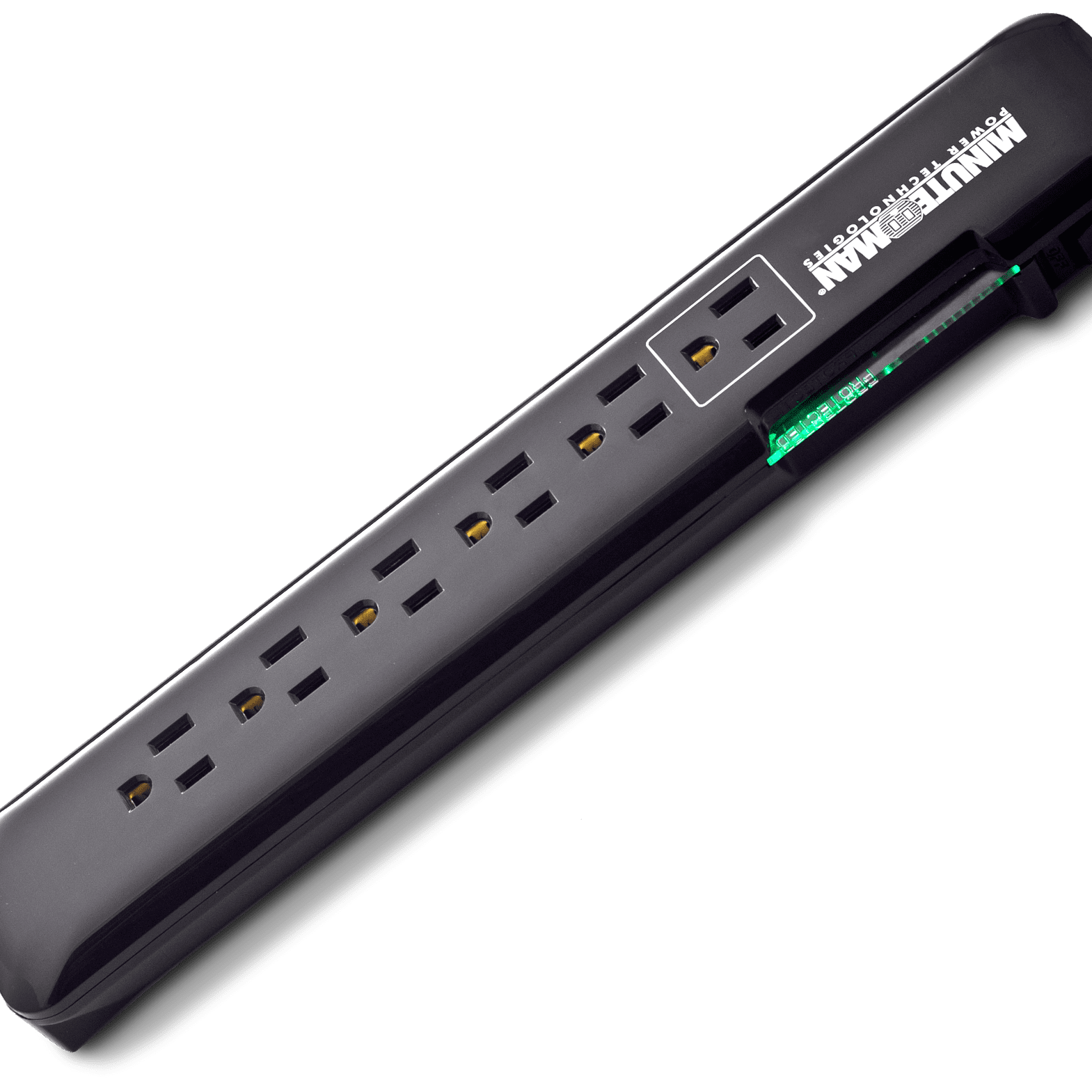

NEW! 6-Outlet Slimline Surge Protector [MMS664S]

  • Six grounded outlets
  • High Visibility Green LED protection indicator
  • Attractive and functional low-profile design
  • UL 1449, 1363 certified
  • Lifetime limited warranty
  • $75,000 connected equipment warranty protection
  • 1080 Joules



Click to enlarge
Learn more about the new
MMS Slimline Series



NEW! 8-Outlet Slimline Surge Protector [MMS686SCT]

  • Eight grounded outlets
  • Three transformer spaced outlets
  • Phone/fax/modem/coax protection
  • High Visibility Green LED protection indicator
  • Attractive and functional low-profile design
  • UL 1449, UL 1363, UL 452, UL 497A, UL 1492, certified
  • Lifetime limited warranty
  • $200,000 connected equipment warranty protection
  • 3420 Joules
Specifications

View complete specifications table in the MMS Series Brochure

Select a series to view specifications tables:


Standard Series Specifications

MODEL MMS370 MMS370T MMS570 MMS362P MMS130C MMS110
Electrical Rating 15A, 120V, 1800 Watts
Joule Rating 1080J 1440J 241J 1080J 540J
Outlet Quantity 7 7 7 6 3 1
Dimensions
(L x W x H) inches
12.76 x 4.25
x 1.77
12.76 x 4.25
x 1.77
13.9 x 4.41
x 1.54
10.79 x 3.27
x 3.15
4.02 x 4.02
x 2.28
2.13 x 2
x 2.38
Switch/Circuit Breaker 2 position on/off
15A AC circuit breaker
- -
Receptacle Covers Yes Yes - - - -
Protection Type
   Mode
Advanced X3 MOV
L-N, L-G, N-G
Standard MOV
L-N
Advanced X3 MOV
L-N, L-G, N-G
UL clamping voltage 400V 400V 400V 800V 400V 400V
Maximum peak current 72,000A 96,000A 84,000A 12,000A 72,000A 36,000A
Max spike voltage 6KV
EMI/RFI noise filter
Frequency Attenuation
150KHz-100MHz
Up to 40dB
150KHz-100MHz
Up to 40dB
150KHz-100MHz
Up to 40dB
- 150KHz-100MHz
Up to 40dB
150KHz-100MHz
Up to 40dB
Tel/Fax:
Jack Type
Energy
Line Protection
- RJ11/6P2C (1in/1out)
160J
1 Line
- - - -
Power cord length 6 ft. 9 ft. 3 ft. - -
Surge protected indicator Yes Yes Yes - Yes Yes
Ground OK indicator Yes Yes Yes - Yes Yes
Surge circuit shutdown Yes Yes Yes - Yes Yes
Power safety shutdown (L-N) Yes Yes Yes - Yes Yes
Cord Management - - Yes - - -
Accessories - Tel Cable x 1 - - - -
Safety, approvals and warranty UL 1449, UL 1363, cUL
Warranty Limited Lifetime Limited Lifetime Limited Lifetime Limited 1-year Limited Lifetime Limited Lifetime
Rotating Outlet Series

MODEL MMS760RCT MMS780R MMS7100RT MMS7120RCT
Electrical Rating 15A, 120V, 1800 Watts
Joule Rating 2160J 2160J 2880J 4320J
Outlet Quantity 6 8 10 12
Dimensions
(L x W x H) inches
6.26 x 4.25 x 2.52 14.02 x 3.54 x 2.28 12.52 x 4.41 x 1.89 11.89 x 6.02 x 2.17
Rotating Outlets 6 6 5 8
Switch/Circuit Breaker - 2 position on/off
15A AC circuit breaker
Protection Type
   Mode
Advanced X3 MOV
L-N, L-G, N-G
UL clamping voltage 330V, 400V, 400V
Maximum peak current 144,000A 144,000A 180,000A 252,000A
Max spike voltage 6KV
EMI/RFI noise filter
Frequency Attenuation
150KHz-100MHz
Up to 40dB
150KHz-100MHz
Up to 40dB
150KHz-100MHz
Up to 58dB
150KHz-100MHz
Up to 58dB
Tel/Fax:
Jack Type
Energy
Line Protection
RJ11/6P2C (1in/2out)
160J
1 Line
- RJ11/6P2C (1in/2out)
160J
1 Line
RJ11/6P2C (1in/2out)
160J
1 Line
Network Jack Type
Energy
Line Protection
- - - RJ45 8P8C/(1in/2out)combo
1,2,3,5
10/100 Base-T (Cat5)
DSS/Coax: Surge Arrestor
Breakdown Volts
Insertion Loss
Line Protection
Gas Tube
> 75V
> 0.1dB
1 Line
- - Gas Tube
> 75V
> 0.1dB
1 Line
Power cord length - 7 ft. 7 ft. 9 ft.
Surge protected indicator Yes
Ground OK indicator Yes
Surge circuit shutdown Yes
Power safety shutdown (L-N) Yes
Cord Management - Yes Yes Yes
Accessories - - Tel Cable x 1 Tel Cable x 1
+ Coax cable x 1
+ Cat5 cable x 1
Safety Approvals UL 1449, UL 1363, cUL
Warranty Limited Lifetime
Slimline Series

MODEL MMS130RC MMS660S MMS664S MMS686SCT
Electrical Rating 15A, 120V, 1800 Watts
Joule Rating 1080J 540J 1080J 3420J
Outlet Quantity 3 6 6 8
Dimensions
(L x W x H) inches
8.125 x 5 x 3.375 9.14 x 5.95 x 1.07 15.99 x 5 x 1.5 16.85 x 7 x 1.5
Rotating Outlets 1 - - -
Switch/Circuit Breaker - - 2 position on/off
15A AC circuit breaker
Protection Type
   Mode
Advanced X3 MOV
L-N, L-G, N-G
UL clamping voltage 400V 500V 400V 400V
Maximum peak current 72,000A 36,000A 72,000A 20,400A
Max spike voltage 6KV
EMI/RFI noise filter
Frequency Attenuation
150KHz-100MHz
Up to 70dB
150KHz-100MHz
Up to 40dB
150KHz-100MHz
Up to 40dB
150KHz-100MHz
Up to 58dB
Tel/Fax:
Jack Type
Energy
Line Protection
- - - RJ11/6P2C (1in/1out)
160J
1 Line
DSS/Coax: Surge Arrestor
Breakdown Volts
Insertion Loss
Line Protection
Gas Tube
> 75V
> 0.1dB
1 Line
- - Gas Tube
> 75V
> 0.1dB
1 Line
Power cord length - - 4 ft. 6 ft.
Surge protected indicator Yes
Ground OK indicator - - - Yes
Surge circuit shutdown Yes
Power safety shutdown (L-N) Yes
Safety approvals UL 1449, UL 1363, UL452, UL1492, cUL UL 1449, UL 1363, cUL UL 1449, UL 1363, cUL UL 1449, UL 1363, UL452, UL1492, cUL
Warranty Limited Lifetime
LineGuard Data Line Surge Protection

Don't forget the data lines!

Minuteman's LineGuard Series surge protection products are perfect for protecting security and networking devices from damaging power surges and lightning. Models are available for protecting Cat5e and Cat6 network-based IP cameras and equipment.

Learn more now at the LineGuard page >


Click to learn more
Advanced X3 MOV Hardware - Ultimate Fire Safety

Surge Protector safety is critical:
Minuteman's X3 provides safe surge protection


Most Minuteman surge protectors feature Advanced X3 MOV (metal oxide varistor) technology. The X3 MOV offers significantly higher heat dissipation and surge energy capacity than traditional round type MOV hardware, virtually elminating the risk of fire during over voltage situations.

All MOV hardware is not created equal

The Advanced X3 MOV surge protection hardware utilized in most Minuteman surge protection devices provides added protection against fire danger by:

  • Offering more surge capacity (Joules) than regular MOVs
  • Providing better and faster heat dissipation during a surge

See which Minuteman products include Advanced X3 MOV protection on the specifications page >


Advanced X3 MOV in Minuteman Rotating Outlet Series



About Us Comments Privacy Policy Subscribe Copyright Site Map
Minuteman's PowerBlog Minuteman on Facebook Minuteman on Twitter Minuteman on LinkedIn Minuteman on YouTube
